Concepts

Cloudreve is a cloud storage system that creates an abstraction layer on top of the physical file system. This section will introduce several core concepts in Cloudreve, understanding them will help you better use Cloudreve.

Cloudreve's file system mainly consists of Files, File Blobs, Metadata, Storage Policies, and Physical Files. Among these, Files, File Blobs, and Metadata are stored in the database, while Physical Files are stored in storage providers defined by storage policies. Here's a simplified example:

Syntax error in textmermaid version 11.6.0

Files

A File is what users see in the file explorer in Cloudreve, and folders are also a special type of file.

Files and File Blobs

A File can contain one or more File Blobs, with the actual file content stored in the File Blobs.

When version retention is enabled for a File, each modification to the file content generates a new File Blob, while the previous version's File Blob remains associated with that File for version history. Even when version retention is not enabled, Cloudreve still generates a new File Blob when users update file content, and then disassociates the old version's File Blob.

When a File generates thumbnails (only for Cloudreve proxy generation), Cloudreve stores the thumbnail data in a thumbnail File Blob and associates it with that File.

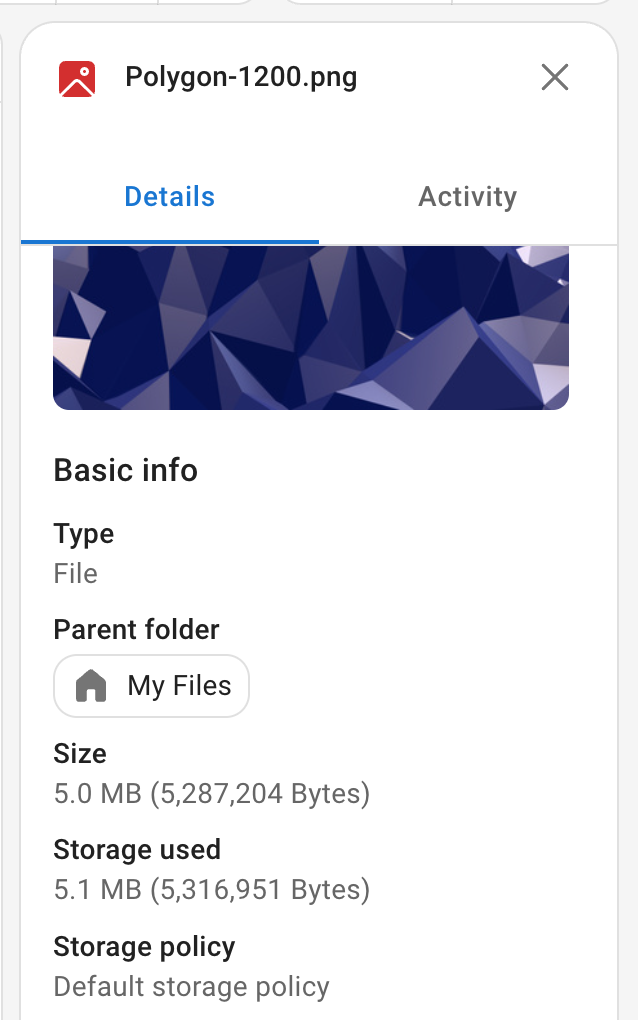

A File's "size" refers to the size of the current version's File Blob. A File's "storage used" is the sum of all associated File Blobs' sizes.

File Size

Files and Storage Policies

A File is also associated with a preferred Storage Policy:

  • For regular files, it only represents how to store new File Blobs, not the actual storage location of existing files.
  • For folders, it represents the storage policy for new files in that directory. If no storage policy is specified for the folder, it uses the parent directory's settings.

When the preferred Storage Policy doesn't exist or is unavailable, it falls back to using the first available Storage Policy for the user.

Files and Metadata

A File is associated with zero to multiple Metadata entries, which record additional information about the file, such as media file information, EXIF data, thumbnail status, etc.

Copying

When a user copies a File, the File and its associated Metadata are copied to create new records, but the associated File Blobs are not copied; instead, new File Blob associations are created in the newly generated File.

File Blobs

A File Blob represents the actual stored data, referencing a physical file on the storage provider through an associated Storage Policy and a path reference. File Blobs are immutable. A File Blob can be associated with multiple Files, such as when a File is copied multiple times, these Files share the same set of File Blobs. When a File Blob is not associated with any File, it is considered unused and will eventually be removed by Cloudreve's queue scheduler, which will delete the corresponding physical file on the storage provider.

File Blob types include: versions, thumbnails, and Live Photos.

Physical Files

A Physical File is the actual file on the storage provider, with its path recorded in a File Blob.

Storage Policies

A Storage Policy defines how files are stored, storage provider configurations, and file upload and download configurations. Each user group is assigned to a Storage Policy, and users can only use the Storage Policy assigned to their user group.

Pro

In the Pro edition, a user group can be assigned to multiple Storage Policies, and users can freely choose which Storage Policy to use.

Metadata

Metadata records additional information about files, such as media file information, EXIF data, thumbnail status, etc. Each metadata entry is associated with a unique File, and a File can have zero to multiple metadata entries. Metadata contains Name and Value fields; if the name starts with sys:, it indicates system metadata that cannot be modified by users.

Common information recorded in metadata includes:

  • File media information
  • Custom directory icons/colors
  • Thumbnail status
  • Share links corresponding to shortcut files
  • Original path of files in the recycle bin
  • Expiration date of files in the recycle bin
  • File tags

Metadata can be used for file searching.

File Permissions

File permissions define the access permissions for other users when this file is a descendant of a shared directory, if not set, Cloudreve will search upwards for the first available permission setting of the parent directory until it reaches the shared root directory.

When a user shares a directory, the directory's own permissions are ignored because the user sets the permissions of the shared link when sharing, this setting overrides the directory's permissions, but the permissions of its subdirectories remain effective.

For single file sharing, the file's permission settings are ignored, and the permission settings of the shared link are used.

TIP

File permissions are invalid for the admin user group, the admin user group always has all permissions.
